Virago XV400-535 Single Carb Manifold with PWK 34 FLAT SLIDE & Filter

Review

€259.00

Tax included

PLEASE READ ENTIRE DESCRIPTION BEFORE YOU BUY!

Hello, Manifold and carburetor are shipped separately. 99% of the time they might arrive on different days. Please check your note or messages for additional tracking updates. Best regards.

Security policy

We accept VISA, MASTERCARD, AM EX, Bank Wire or Revolut Payments only, due to faster service.

Delivery policy

Fast and free worldwide delivery up to 15 business days.

Return policy

We do not accept returns, but we do exchange for defective parts for free. No returns required.

Manifold is bolted on with the reason... Once fuel goes trough manifold it cools it down. So it is very important to keep manifold heated up. Bolt on manifold is attached to the cylinders and heat is transferred to the manifold. F.ex. mounted with rubber boots or so, mounted different way, single carb set up wont work properly because mixture will be rich no matter what jetting is. Let say you having a moonshine distillation machine... that develops a liquid from the steam. Long story short. Manifold should be warm enough to deliver atomized fuel in to the engine as a gas.

If you are not sure how to complete your project or have not enough confidence how to do it right, please DO NOT BUY IT!!! Don't waste yours and my time. I m not taking returns at all, only if part is defective due to manufacturing issues or so. No beginners or game players please. I m working hard to make you old timers get back on the road. Your cooperation would be appreciated. Thank you for understanding.

NOTE: Engine tuning should only be performed by experienced mechanics as a "too-lean" condition can melt pistons and a "too-rich" condition can lead to excessive component wear and failure. Always do frequent plug checks or O2 measurements when making any carb adjustment.

NOTE! Carburetor might come in different color than shown in the pictures (aluminum color/finish) , depending on stock quantity. So please ask before you buy. Thank you.

All items are shipped via DHL Express international service, so it is guaranteed safe and on time delivery. Usually it takes from 3 to 9 business days worldwide (for manifold). Carburetor might arrive a few days later than manifold.

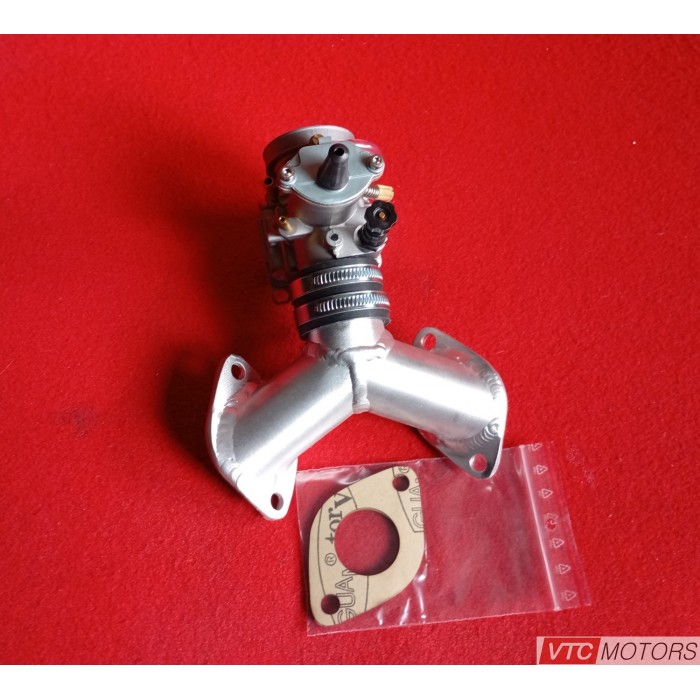

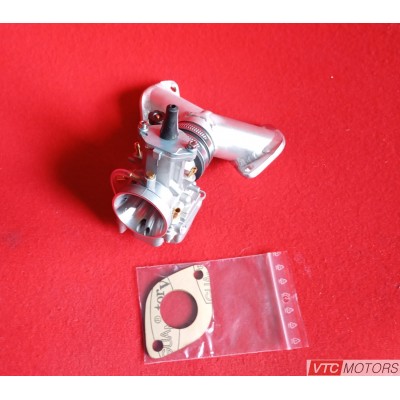

ALUMINUM intake manifold with High Performance PWK 34 carburetor and carburetor holder/boot.

PWK 34 is very similar to Mikuni VM34. The difference is that Mikuni slide is round, PWK is flat with a bit rounded side from air throat side and factory jetting is different.

Flats are usually much more responsive. The distance under the slide is considerably less than a round slide and the space for the slide is smaller, so there is less flow disruption too. That short slide creates a stronger signal "pressure drop" across the jets.
Flat slides are known to be higher performance because there is less area in the slide region of the carb. The air can get across the slide quicker.

STRICTLY FOLLOW THE INSTALLATION GUIDE BELOW!

WARNING! DO NOT INSTALL THE MANIFOLD WITHOUT GASKETS TO PREVENT DEFORMATION OF THE FLANGES. MANIFOLD WONT FIT WITHOUT THE GASKETS. THIS IS MANDATORY!

BLACK RTV on gaskets must be used installing the manifold to assure 100% seal.

1. Apply RTV on cylinder heads

2. Stick the gaskets and let them sit for a while.

3. Apply RTV on the manifold and gently tie the bolts.

4. Let it dry for about 45 min - 1 hour.

Good to know!

https://www.youtube.com/watch?v=vmltHKxtQaw&t=27s

Carburetor tuning video

https://youtu.be/rCo6dJAxi64

Manifold is designed to fit all Yamaha Virago XV400 - 535

Manifold and carburetor will ship separately. 99% of the time they might arrive on different days.

NOTE! Carburetors are coming with default factory jetting of main jet No 135, pilot No 38. Spare Main jets No. 130 and No. 140 are included plus spare needle and needle jet.

For each application carburetors must be re jetted depending on specific engine size. Please feel free to ask about jetting requirements for your application. Thank you.

Materials:
ALUMINUM

Parts Included:
Manifold
2 x gaskets

1 x Carburetor PWK 40 flat slide

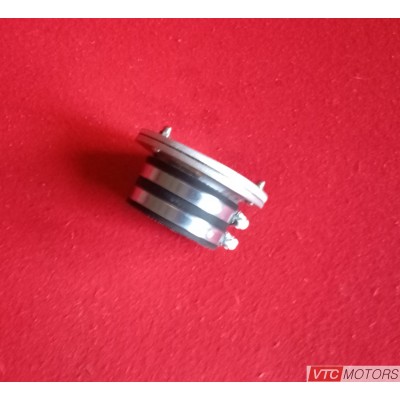

1 x Carburetor mount/boot

If you are unsure how to install the manifold and or carb after reading an Installation Guide, please take your part(s) to a licensed or certified mechanic for install. I cannot be held responsible for damaged product due to buyers lack of knowledge.
I do not accept returns due to buyers remorse, lack of understanding how to install, product damaged during installation or incorrect product purchased for your particular bike. If you have any questions, please contact.

Reference

In stock 5 Items
